Position
Decide whether the chamber should be full-length lie-down, adjustable between seated and reclined positions, dedicated seated or upright seated.
That decision narrows the range immediately.
SOFT-SHELL HYPERBARIC CHAMBERS · UAE & GCC
Soft-Shell Hyperbaric Chambers in the UAE
Compare four distinct soft-shell hyperbaric chamber formats: full-length lie-down, adjustable seated and reclined, compact mild seated, and upright entry designed to support wheelchair users.
For private wellness spaces, clinics, recovery facilities, hotels and commercial wellness projects across the UAE and GCC.
Investment from AED 50,000Final pricing depends on the chamber, pressure version, operating
equipment and project location.
4 Models · 1.1 to 1.5 ATA Across the Range · CE-Certified Equipment ·
3-Year Warranty
Still comparing models? Your enquiry can include an Axon model recommendation.
Four soft-shell formats1.1 to 1.5 ATA across the range
START WITH THE FORMAT
Soft-Shell Does Not Mean One Standard Chamber Format
Soft-shell chambers differ in how the user is positioned, how they enter, the pressure available, the room they occupy and the equipment required around them.
A full-length lie-down chamber solves a different problem from an adjustable seated chamber, a compact mild system or an upright wheelchair-access format.
Choose the format around the user and the space, not the soft-shell label alone.
UAE BUYING GUIDE
Portable Hyperbaric Chambers in the UAE: Choosing the Right Format
When comparing a portable hyperbaric chamber in the UAE, look beyond the shell. The assembled chamber size, user position, entry arrangement and pressure settings determine whether a model is suitable for your room and intended use. Not every soft-shell system has the same transport or installation requirements.
Ask what operating equipment is included, what floor space and access route are needed, and how delivery, setup and ongoing support will be handled. You can review hyperbaric chamber pricing factors and compare portable and mild chamber terminology before selecting a model.
For a model-specific recommendation, compare the four configurations below or request project pricing. Axon Recovery will help review the chamber and operating equipment together before a quotation is confirmed.

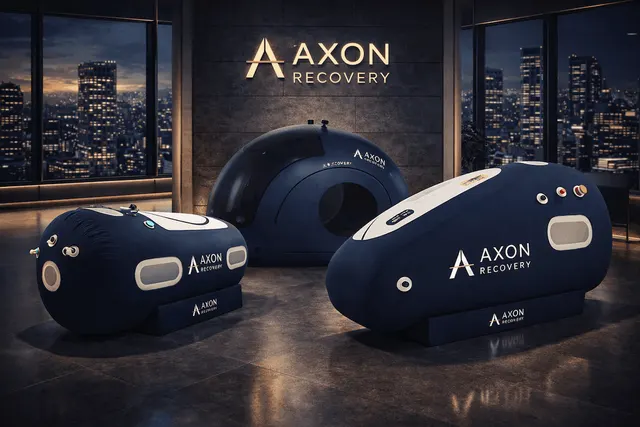

THE RANGE
Which Soft-Shell Chamber Fits Your Project?
Start with user position, entry and available space.
Atom
For full-length lie-down useA one-user horizontal chamber measuring 230 cm long by 90 cm diameter, with pressure up to 1.5 ATA.
Lie-down · 230 × 90 cm · Up to 1.5 ATAExplore Atom ↓
Vertex
For adjustable seated and reclined positioningAn adjustable-chair chamber supporting seated, semi-reclined and flat positioning, available in separate 1.4 ATA and 1.5 ATA versions.
Adjustable positioning · 1.4 or 1.5 ATAExplore Vertex ↓
Orion
For a compact seated mild chamberA dedicated seated chamber with adjustable back support and a mild pressure range of 1.1 to 1.3 ATA.
Compact seated · 180 × 60 × 126 cm · 1.1 to 1.3 ATAExplore Orion ↓
Coren
For upright access with wheelchair-entry supportAn upright 1.4 ATA chamber with a flat metal base and inclined access plate designed to support easier seated and wheelchair entry.
Upright seated · 170 × 160 × 190 cm · 1.4 ATAExplore Coren ↓
AXON RECOVERY · HEADQUARTERED IN THE UAE
Chamber Selection Starts With the Space
Before an order is confirmed, Axon reviews chamber choice, room fit, access and operating equipment together. That specification then carries through to quotation, delivery planning and after-sales service across the UAE and GCC.
CE-Certified Equipment3-Year WarrantyUAE HeadquartersGCC Project Support
Chamber SelectionRoom ReviewDelivery PlanningAfter-Sales Service
“I was looking at HBOT and red light therapy for my home, but it was hard to know what was genuinely suitable. The team helped narrow it down based on space and usage.”
CONFIGURATION COMPARISON
Compare the Four Soft-Shell Chambers
The quickest way to narrow the range is to compare format, position, pressure and access.
| Model |
Atom |
Vertex |
Orion |
Coren |
|---|---|---|---|---|
| Format | Full-length lie-down | Adjustable seated / reclined | Compact seated | Upright seated |
| Pressure | Up to 1.5 ATA | 1.4 or 1.5 ATA | 1.1 to 1.3 ATA | 1.4 ATA |
| User Position | Lie-down | Seated, semi-reclined or flat | Seated with adjustable back support | Upright seated |
| Dimensions | 230 × 90 cm | Version-dependent | 180 × 60 × 126 cm | 170 × 160 × 190 cm |
| Weight | 17 kg | 36 or 46 kg, version-dependent | Under 200 kg | 45 kg |
| Main Distinction | Spacious horizontal format | Position flexibility | Compact mild seated format | Upright entry with wheelchair support |
Not sure which format fits?Axon can narrow the range after reviewing your space, preferred
position and access needs.
Request Project Pricing
THE BUYING DECISION
What Actually Determines the Right Chamber?
Pressure matters, but it is not the first question.
Entry
Consider how the user will enter and leave the chamber.
Where upright access or wheelchair entry matters, establish this before the chamber is selected rather than trying to solve access around the equipment later.
Room Fit
Compare the chamber against the usable room, not total floor area alone.
Allow for the chamber, entry and exit, operating equipment, controls and normal movement around the space.
Private or Commercial Operation
A private wellness space may be planned around one regular user.
A clinic, recovery facility, hotel or commercial wellness environment also needs to account for repeated use, staff access, room circulation and presentation.
Equipment and Investment
The chamber is only part of the system.
Air delivery, oxygen supply, cooling, filtration and controls vary by model and should be considered with the chamber itself.
Additional pressure capability, positioning flexibility or access features only add value when the project actually needs them.
THE FOUR MODELS
Explore the Four Soft-Shell Hyperbaric Chambers

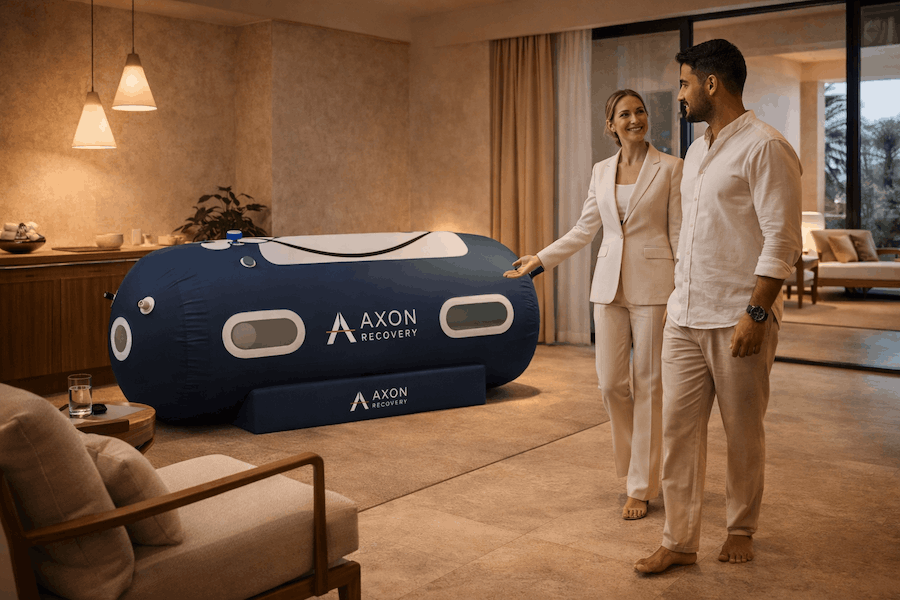

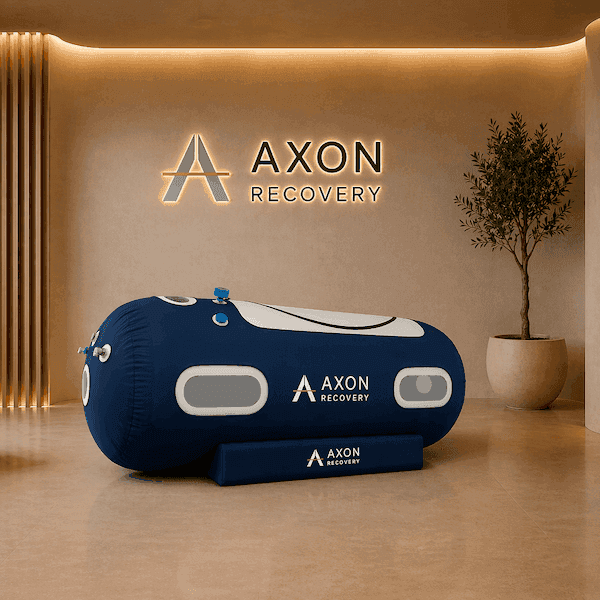

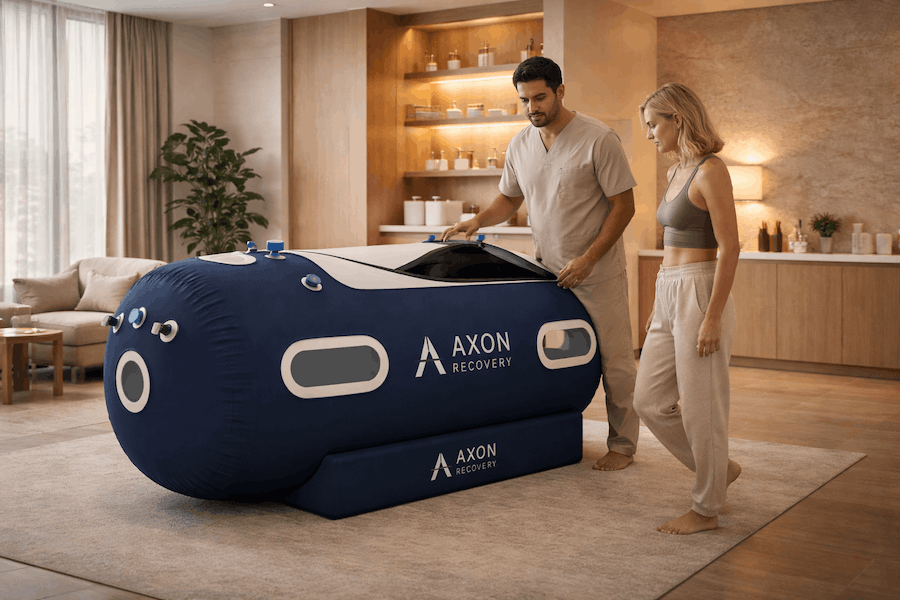

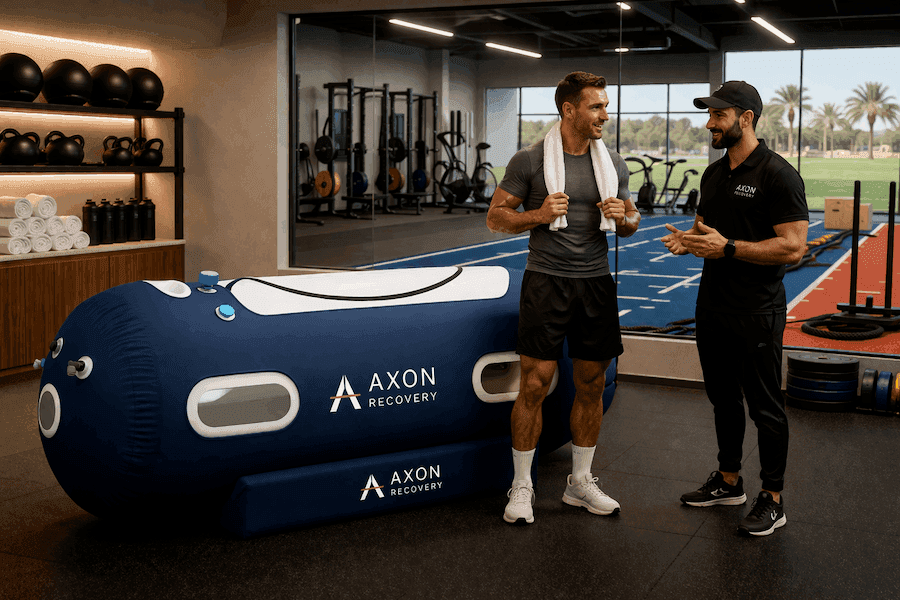

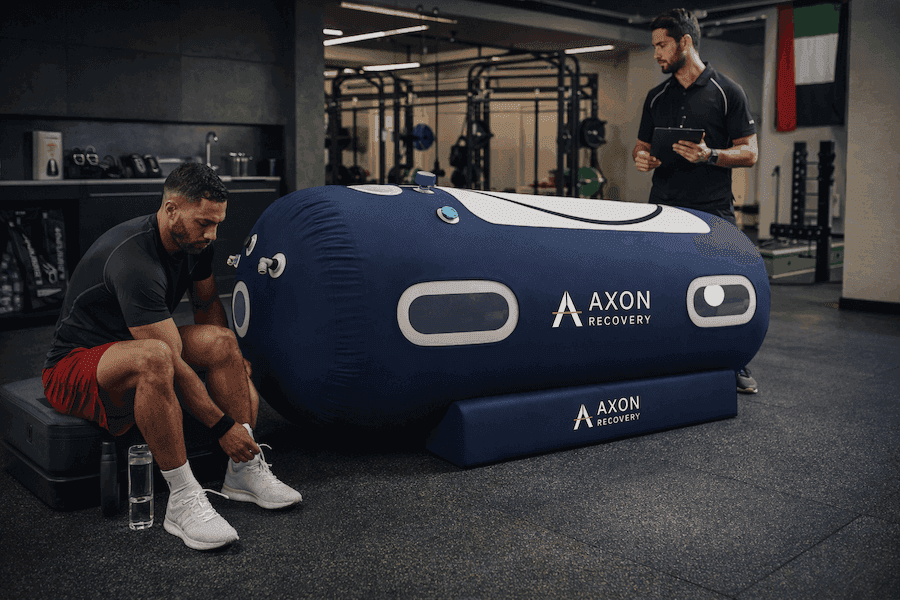

Atom: Full-Length Lie-Down
Atom is built for one-user horizontal sessions where a spacious full-length chamber is preferred.
The chamber measures 230 cm long by 90 cm diameter and supports pressure up to 1.5 ATA.
What Defines Atom
Full-length horizontal formatBuilt around dedicated lie-down use.
Up to 1.5 ATAAt the upper end of the Axon soft-shell pressure range.
10 L/min oxygen concentratorPaired with cooling and dehumidifying equipment and double
activated carbon filtration.
Seven double-layer viewing windowsPositioned around the chamber for visibility from the
interior.
Technical Snapshot
230 × 90 cm17 kgUp to 1.5 ATACustom multilayer high-strength TPUInternal metal frame10 L/min oxygen concentratorAxon All-in-One setup available

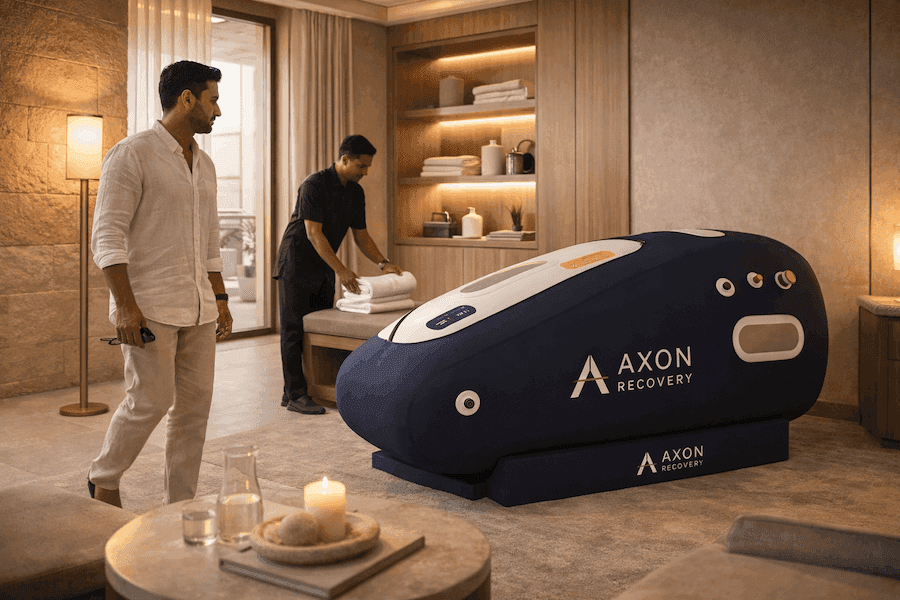

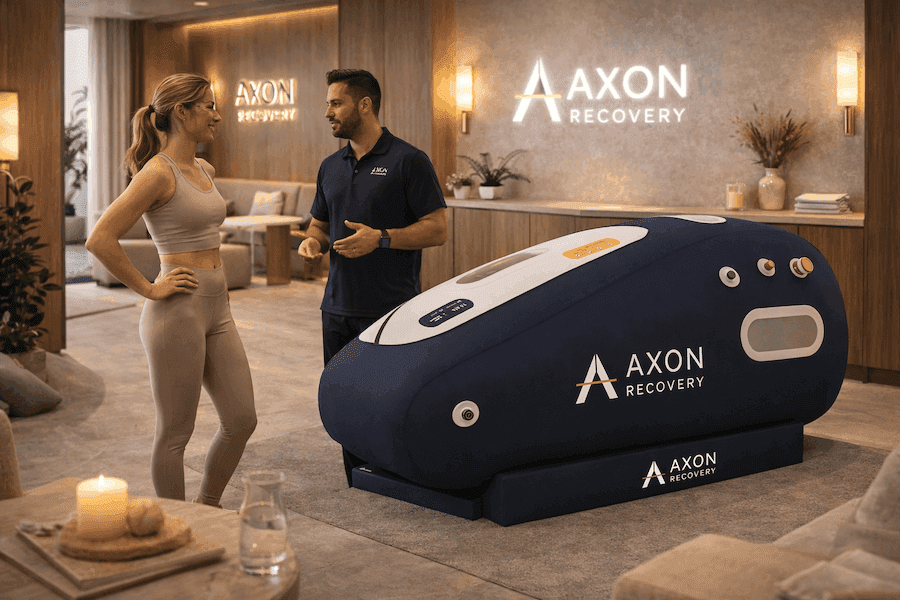

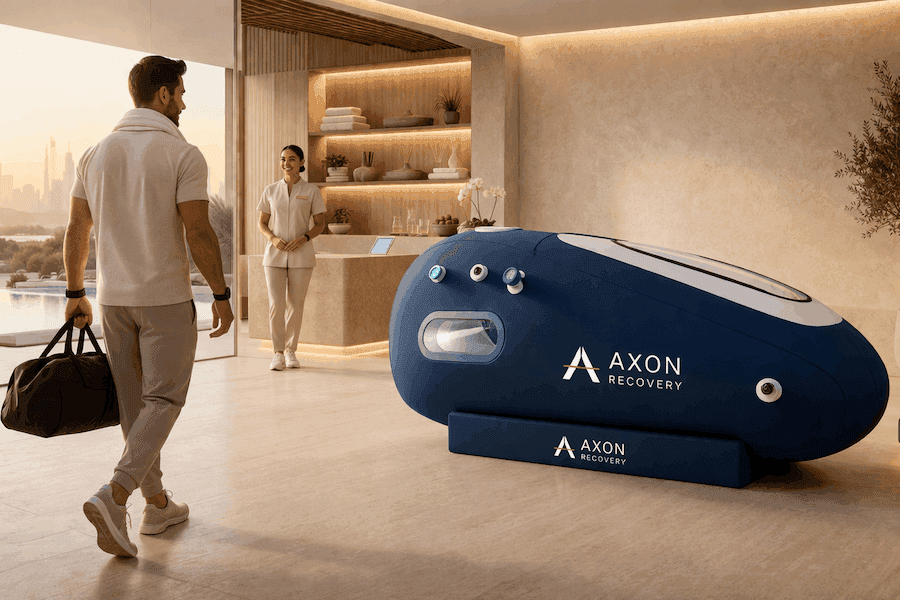

Vertex: Adjustable Seated and Reclined Positioning
Vertex is designed for projects where the user position needs to be more flexible than a dedicated horizontal or upright format.
Its adjustable chair supports seated, semi-reclined and flat positioning. Separate 1.4 ATA and 1.5 ATA versions are available, with different chamber dimensions and weights.
What Defines Vertex
Adjustable-chair formatSupports seated, semi-reclined and flat positioning.
Two pressure versionsAvailable in separate 1.4 ATA and 1.5 ATA chambers.
Version-specific dimensionsThe two versions use different chamber formats and should be
matched to the available room before ordering.
10 L/min oxygen concentratorPaired with cooling and dehumidifying equipment and double
activated carbon filtration.
Technical Snapshot
Vertex 1.4 ATA · 230 × 100 × 120 cm · 46 kgVertex 1.5 ATA · 180 × 90 × 110 cm · 36 kgHigh-strength / custom multilayer high-strength TPUInternal metal frame10 L/min oxygen concentratorAxon All-in-One setup available

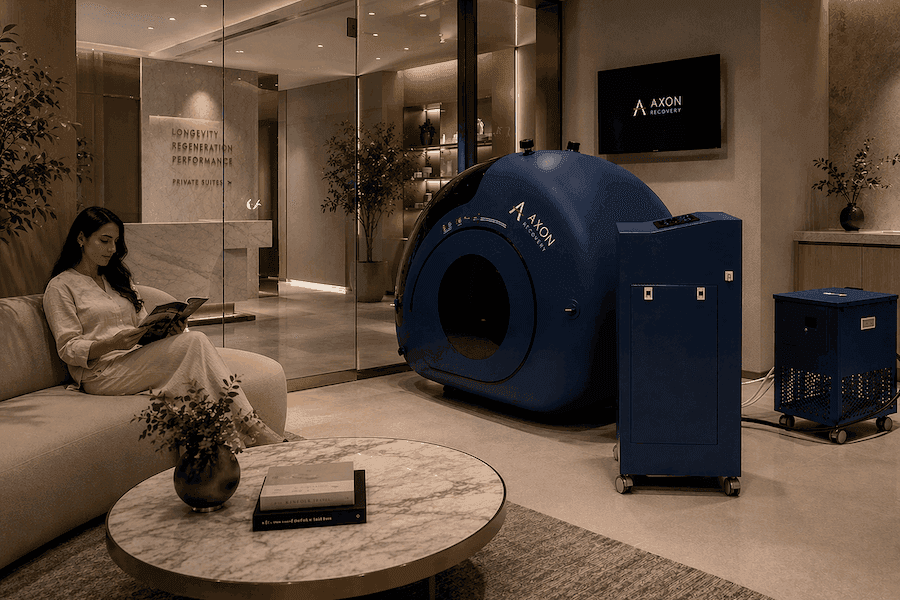

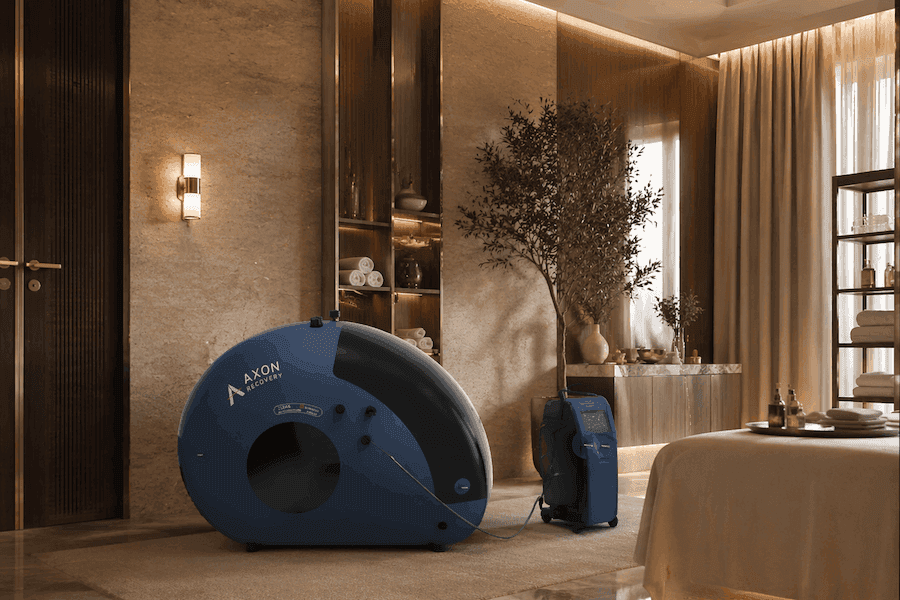

Orion: Compact Seated Mild Chamber
Orion is a dedicated seated mild hyperbaric chamber operating across a pressure range of 1.1 to 1.3 ATA.
Its 180 × 60 × 126 cm chamber profile, adjustable back support and integrated air and oxygen equipment distinguish it from the longer Atom and adjustable Vertex formats.
What Defines Orion
Dedicated seated formatBuilt around seated use with adjustable back support.
1.1 to 1.3 ATAA dedicated mild pressure range within the Axon soft-shell
range.
Integrated air and oxygen equipmentCombines a 130 L/min air booster with an oxygen
concentrator.
Cooling and air exchangeWater-cooled air conditioning and continuous internal air
replacement.
Technical Snapshot
180 × 60 × 126 cmUnder 200 kg1.1 to 1.3 ATAPolyester fabric-coated TPUInternal metal frame130 L/min air booster≥90% oxygen concentration through mask-based breathing
systemManual mechanical pressure controlTriple-pressure protectionWide viewing window · LED lighting · Music system

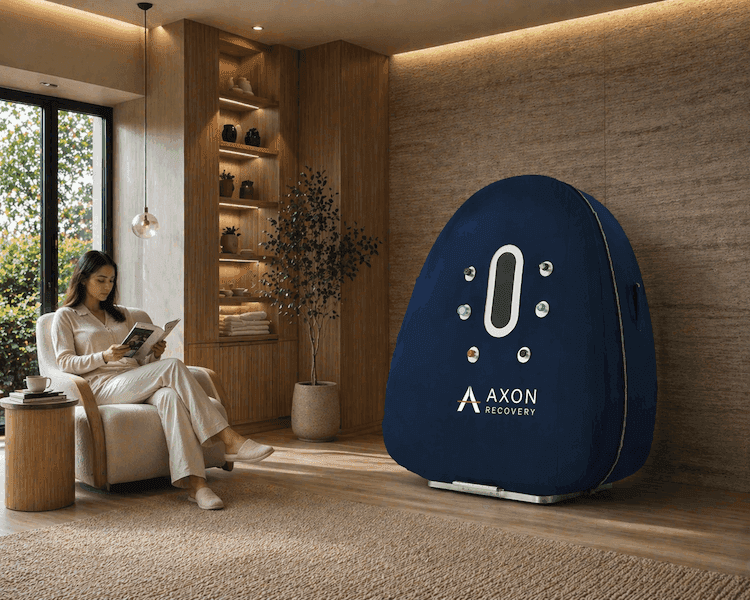

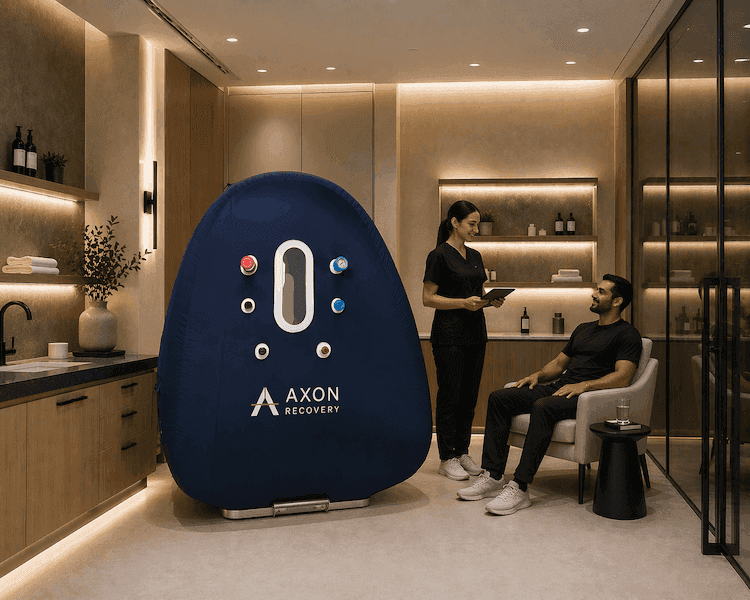

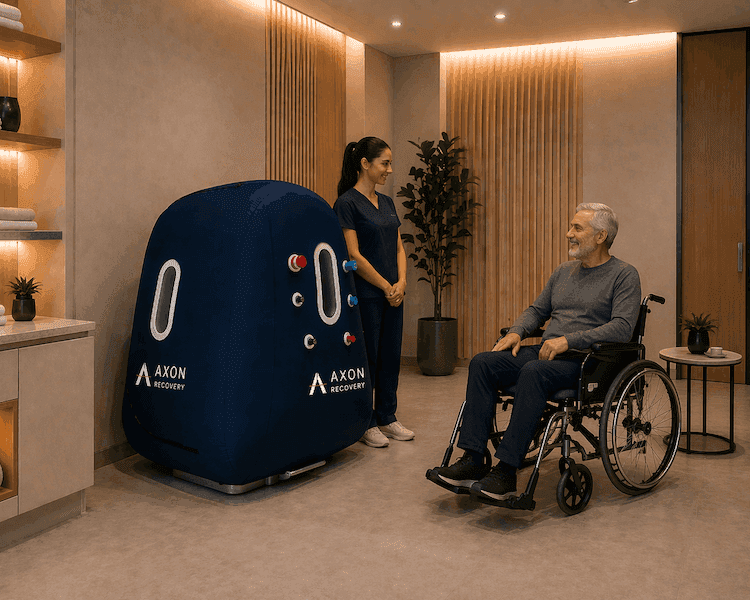

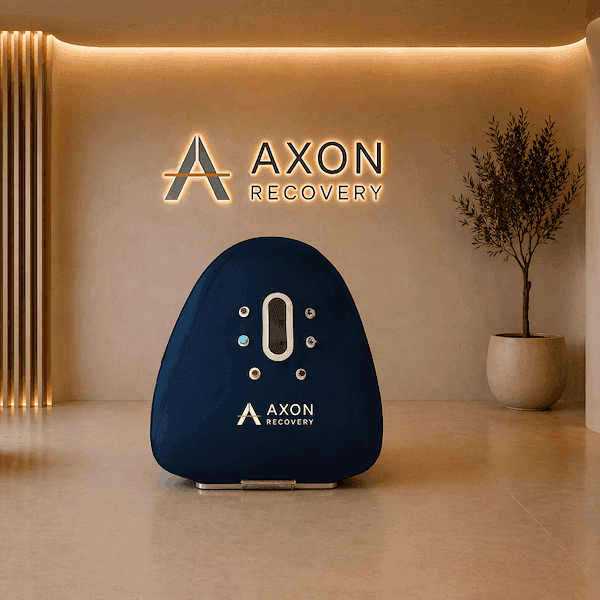

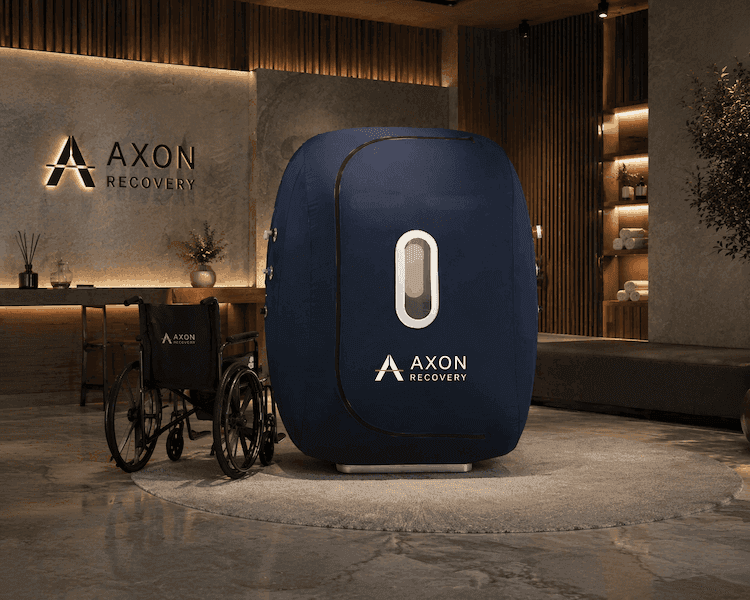

Coren: Upright Access With Wheelchair-Entry Support
Coren is designed for projects where upright access is a primary consideration.
Its flat metal base, inclined access plate and upright chamber format support seated entry, including wheelchair-based access.
What Defines Coren
Upright seated formatThe user enters and remains seated rather than entering a
horizontal chamber.
Flat metal baseProvides a stable floor inside the chamber.
Inclined access plateDesigned to make the approach into the chamber more
practical.
Wheelchair-entry supportThe flat base and inclined access plate are designed around
chair-based entry.
Technical Snapshot
170 × 160 × 190 cm45 kg1.4 ATAHigh-strength TPUMetal base and frame10 L/min oxygen concentratorCooling and dehumidifying equipmentDouble activated carbon filtrationAxon All-in-One setup available
DETAILED SPECIFICATIONS
Technical Comparison
Once the chamber format has been narrowed, use the technical specifications to confirm pressure, dimensions, construction and operating equipment.
Chamber and Construction
| Specification | Atom | Vertex 1.4 ATA | Vertex 1.5 ATA | Orion | Coren |
|---|---|---|---|---|---|
| Dimensions | 230 × 90 cm | 230 × 100 × 120 cm | 180 × 90 × 110 cm | 180 × 60 × 126 cm | 170 × 160 × 190 cm |
| Weight | 17 kg | 46 kg | 36 kg | Under 200 kg | 45 kg |
| Pressure | Up to 1.5 ATA | 1.4 ATA | 1.5 ATA | 1.1 to 1.3 ATA | 1.4 ATA |
| Material | Custom multilayer high-strength TPU | High-strength TPU | Custom multilayer high-strength TPU | Polyester fabric-coated TPU | High-strength TPU |
| Structure | Internal metal frame | Internal metal frame | Internal metal frame | Internal metal frame | Metal base and frame |
| Oxygen Equipment | 10 L/min concentrator | 10 L/min concentrator | 10 L/min concentrator | Integrated concentrator | 10 L/min concentrator |
Operating and Safety Details
Atom
- Cooling and dehumidifying equipment
- Double activated carbon filtration
- Double pressure gauges
- Internal and external pressure release valves
- Emergency valve
- Quiet automatic pressure relief valves
- Seven double-layer viewing windows
- Axon All-in-One setup available
Vertex
- Cooling and dehumidifying equipment
- Double activated carbon filtration
- Double pressure gauges
- Internal and external pressure release valves
- Emergency valve
- Quiet automatic pressure relief valves
- Double-layer viewing windows
- Axon All-in-One setup available
Orion
- Integrated 2-in-1 air booster and oxygen concentrator
- 130 L/min air booster
- ≥90% oxygen concentration through the mask-based breathing system
- Water-cooled air conditioning
- Continuous internal air replacement
- Manual mechanical pressure control
- Triple-pressure protection
- Wide transparent viewing window
- LED lighting and music system
Coren
- Cooling and dehumidifying equipment
- Double activated carbon filtration
- Double pressure gauges
- Internal and external pressure release valves
- Emergency valve
- Quiet automatic pressure relief valves
- Double-layer viewing windows
- Axon All-in-One setup available
PURCHASE CONFIDENCECE-Certified Equipment3-Year Warranty
Operating equipment and the applicable chamber specification are confirmed as part of the quotation and purchase process.
Request Project Pricing
ROOM & ACCESS PLANNING
Plan the Room Before You Finalize the Chamber
A chamber can fit within the measured room and still be poorly positioned for daily use.
The room should be reviewed around the chamber, entry route, operating equipment and the way people need to move through the space.
Measure the Usable Space
Allow for the chamber dimensions, entry and exit, operating equipment, access to controls, staff or operator movement and normal circulation through the room.
A 230 cm horizontal Atom creates a different layout from the compact seated Orion or wider upright Coren.
Review the Entry Route
The chamber needs a practical approach before it is installed.
For Coren, the route to the upright entry is particularly important where wheelchair-based access is part of the project requirement.
Account for the Equipment Around the Chamber
Air, oxygen, cooling and filtration equipment need positions that remain practical without obstructing chamber access.
Think Beyond Installation Day
For commercial environments, the layout should still work once the chamber is being used repeatedly by staff and clients.
For private installations, the chamber should sit naturally within the way the room is used every day.
The Chamber Should Fit the Way the Room Needs to Work.
Have room dimensions, a floor plan or photographs of the intended space?
Include them with your enquiry and Axon can review room fit alongside chamber selection.
THE PROJECT PROCESS
From Chamber Selection to Delivery
Narrow the Range
Review user position, pressure, room size and access to identify the chambers worth considering.
Review the Room and Equipment
Confirm chamber placement, entry, supporting equipment and the practical operating layout. Room dimensions, photographs or a floor plan can be reviewed at this stage.
Confirm the Specification and Quote
Finalize the chamber, pressure version, operating equipment, warranty and delivery scope.
Coordinate Delivery and After-Sales Service
Axon coordinates delivery to the agreed UAE or GCC destination and provides the product documentation, operating guidance and after-sales service associated with the equipment supplied.
PURCHASE CONFIDENCE
UAE & GCC Project Support
CE-Certified Equipment · 3-Year Warranty · UAE Headquarters · GCC Project Support
PROJECT PRICING
Soft-Shell Chamber Investment
Investment starts fromAED 50,000
Final pricing is determined by the chamber, pressure version, operating equipment and delivery location.
What Shapes the Final Quote?
ChamberAtom, Vertex, Orion and Coren use different chamber formats,
materials and equipment.
Pressure VersionWhere more than one version exists, the selected pressure
specification forms part of the final quotation.
Operating EquipmentDepending on the model, the system can include an air compressor or
air booster, oxygen concentrator, cooling or dehumidifying
equipment, filtration, controls and pressure-management
equipment.
Delivery LocationDelivery planning varies by destination across the UAE and
GCC.
What Your Quote ShowsYour quotation identifies the chamber, operating equipment,
delivery scope and warranty so the investment can be assessed as a
complete system rather than a chamber shell alone.
You Do Not Need to Choose a Model Before Enquiring
Tell us where the chamber will be used, the space available and your preferred position. Axon can narrow the range before preparing your quotation.
Soft-shell chamber systems from AED 50,000.
What equipment comes with the chamber?
This depends on the model. Your quotation identifies the chamber together with the air, oxygen, cooling, filtration and control equipment included in the selected system.
Are the chambers CE certified?
Yes. The Axon soft-shell chamber range is supplied as CE-Certified Equipment.
What warranty applies?
The soft-shell range is supplied with a 3-year warranty. Warranty documentation and terms are confirmed with the final order.
Do you handle UAE and GCC delivery?
Yes. Axon coordinates delivery for projects across the UAE and GCC. The delivery scope is confirmed with the final quotation.
What happens after delivery?
Axon provides the product documentation, operating guidance and after-sales service associated with the equipment supplied. Warranty support is handled under the applicable 3-year warranty terms.
Can I enquire if I have not chosen a model?
Yes. Use the enquiry form and tell Axon about the room, position, access and intended use. Axon can narrow the range before preparing project-specific pricing.
PROJECT ENQUIRY
Request Project Pricing
Tell us where the chamber will be used, the space available and the position you prefer.
If you have not selected a model, Axon can narrow the range first.
Investment from AED 50,000Not sure which chamber you need? Tell us what you are planning and
Axon can recommend the closest fit.
Chamber selectionRecommend oneTell us about the space, preferred position and intended
use.
