Number of Users
Start with how many people need to use the chamber at one time.
A single-user private setup creates a different requirement from a facility planning around two or more users.
HARD-SHELL HYPERBARIC CHAMBERS · UAE & GCC
Hard-Shell Hyperbaric Chambers in the UAE
Compare four hard-shell hyperbaric oxygen chamber (HBOT) systems by capacity, chamber format, room fit and intended use. Get project-specific pricing and a model recommendation based on your requirements.
For private wellness rooms, clinics, recovery facilities and commercial wellness projects across the UAE and GCC.
Investment from AED 100,000Final pricing depends on the model, configuration, project location and requirements.
Includes a model recommendation based on the details you provide.
Four hard-shell configurations1–4 users · Up to 2.0 ATA
START WITH THE PROJECT
Start With the Project. Then Choose the Chamber.
All four Axon hard-shell systems reach up to 2.0 ATA, but pressure is only one part of the decision.
Capacity, chamber format, room fit, access and intended use determine which system makes sense in practice.
Compare the project first. Then compare the chambers.THE RANGE
Which Hard-Shell Chamber Fits Your Project?
Start with the number of users and the chamber format the space requires.
Aster
For projects requiring a full-length single-user chamberA dedicated lie-down system for one user.
1 user · Lie-down · 225 × 97 × 110 cm · 200 kgExplore Aster ↓
Argon
For projects requiring panoramic seating for one or two usersAvailable in separate one-seat and two-seat variants.
1-2 users · Panoramic seated · 150 × 175 × 179.1 cm · 450 kgExplore Argon ↓
Arden
For projects requiring a dedicated two-chair chamberA purpose-built two-user configuration with two reclining chairs as standard and a more conventional viewing-panel layout with a dedicated twin-chair layout and standard viewing panels rather than Argon’s panoramic format.
1-2 users · Dedicated two-chair · 207 × 161.6 × 174.9 cm · Approx. 480 kgExplore Arden ↓
Axiom
For projects requiring walk-in multi-user capacityA larger seated system with four reclining chairs as standard.
1-4 users · Walk-in seated · 250 × 170 × 175 cm · Approx. 660 kgExplore Axiom ↓All four hard-shell systems reach up to 2.0 ATA.
AXON RECOVERY · UAE HEADQUARTERED
Hard-Shell Chamber Selection, Site Planning and Project Support
Axon Recovery supports private and commercial buyers with the practical work around a hard-shell chamber purchase, from equipment comparison and site planning to delivery coordination and post-purchase support.
UAE HeadquarteredCE-Certified Equipment3-Year WarrantyGCC Project Support
Equipment ComparisonSite PlanningDelivery CoordinationPost-Purchase Support
The objective is not simply to find a chamber that meets the specification. It is to help confirm that the equipment also makes sense for the users, space and wider purchase requirements.
CONFIGURATION COMPARISON
Compare the Four Configurations
All four models reach up to 2.0 ATA. The differences that matter are capacity, format, size, weight and how the chamber needs to be used.
| Model | Aster | Argon | Arden | Axiom |
|---|---|---|---|---|
| Capacity | 1 user | 1 or 2 users | 1-2 users | 1-4 users |
| Format | Full-length lie-down | Panoramic seated | Dedicated two-chair | Walk-in seated |
| Key Difference | Dedicated single-user lie-down format | Choice of 1-seat or 2-seat variants | Two reclining chairs standard | Four reclining chairs standard |
| Dimensions | 225 × 97 × 110 cm | 150 × 175 × 179.1 cm | 207 × 161.6 × 174.9 cm | 250 × 170 × 175 cm |
| Weight | 200 kg | 450 kg | Approx. 480 kg | Approx. 660 kg |
Not sure which configuration fits?Axon can recommend the most relevant model based on your users, space and intended use.
CHOOSING THE MODEL
What Should Determine Your Chamber Choice?
A larger chamber is not automatically a better chamber. Additional capacity and a larger format only create value when the project can make use of them.
Lie-Down or Seated Use
Aster is built around a full-length lie-down format.
Argon, Arden and Axiom use seated configurations with different capacities and layouts.
Room Fit
The chamber needs to make sense within the available room, not simply fit inside its dimensions.
Consider the equipment footprint together with the working space required around it.
Delivery Access
Doorways, corridors, lifts, stairs and turning points can determine whether a chamber can realistically reach the intended room.
Intended Operation
Consider whether the chamber is being planned for private use, regular client use or a higher-capacity commercial environment.
The required capacity should match how the space will actually operate.
Project Investment
Compare the additional capacity, size and equipment configuration against what the project genuinely requires.
“I was looking at HBOT and red light therapy for my home, but it was hard to know what was genuinely suitable. The team helped narrow it down based on space and usage.”
THE FOUR MODELS
Explore the Four Hard-Shell Models

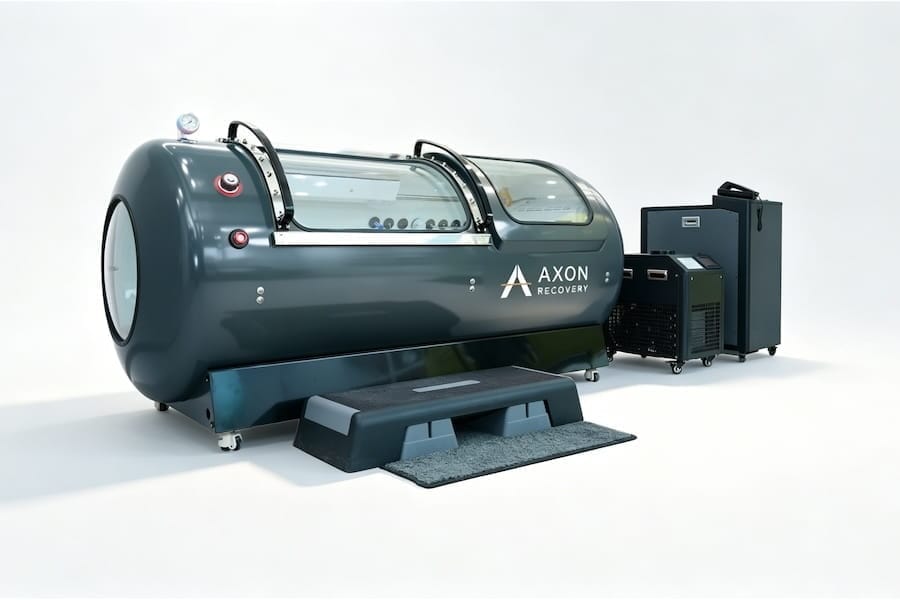

Aster: The Dedicated Full-Length Single-User Option
Aster is the only model in the Axon hard-shell range built specifically around a full-length single-user lie-down configuration.
It is a focused choice when the chamber will be used by one person at a time and additional seated capacity is not required.
Why Choose Aster?
Dedicated single-user formatDesigned around one person and a full-length lie-down position.
Lower system weightAt 200 kg, Aster is materially lighter than the seated multi-user models.
Integrated oxygen systemIncludes a 10 L/min oxygen concentrator with specified oxygen purity of 93% ±3%.
Internal and external operationControls are available inside and outside the chamber, with two-way intercom communication.
Technical Snapshot
225 × 97 × 110 cm200 kgSUS304 stainless steel unibodyTransparent polycarbonate viewing areas10 L/min oxygen concentrator93% ±3% oxygen purity
Argon: Panoramic Seating for One or Two Users
Argon provides a panoramic seated format with separate one-seat and two-seat variants.
Its role in the range is flexibility. Buyers can select single-user or two-user seated capacity without moving directly into a dedicated twin-chair chamber.
Why Choose Argon?
One-seat or two-seat variantsSelect the capacity that matches the intended use.
Panoramic seated formatTransparent polycarbonate windows provide wide viewing areas around the seated configuration.
Integrated monitoringTouchscreen controls provide monitoring of pressure, oxygen, temperature and humidity.
Integrated oxygen and ventilationIncludes a 20 L/min oxygen concentrator with 93% ±3% oxygen purity and ventilation of ≥140 L/min.
Technical Snapshot
150 × 175 × 179.1 cm450 kgSUS304 construction20 L/min oxygen concentrator93% ±3% oxygen purity≥140 L/min ventilationTouchscreen controlsTwo-way intercom

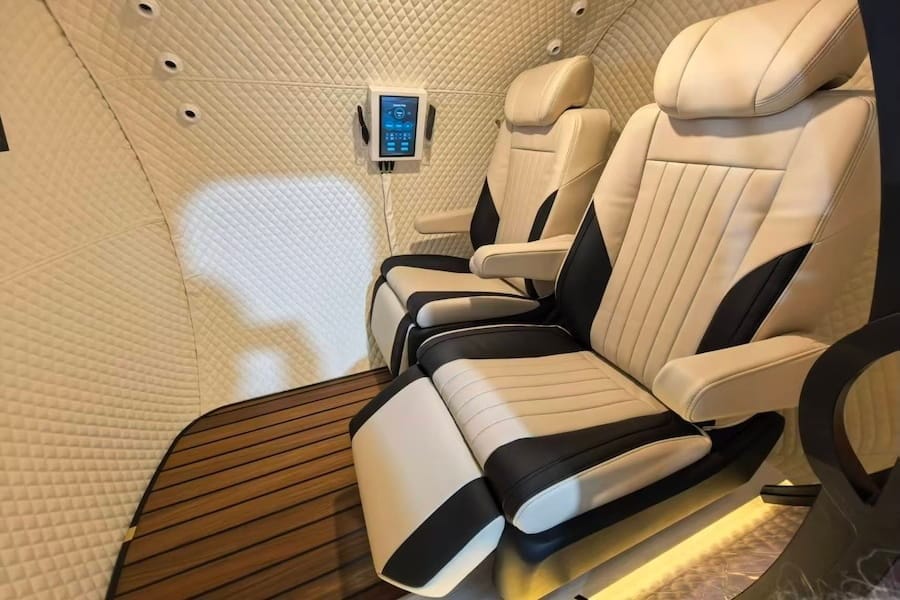

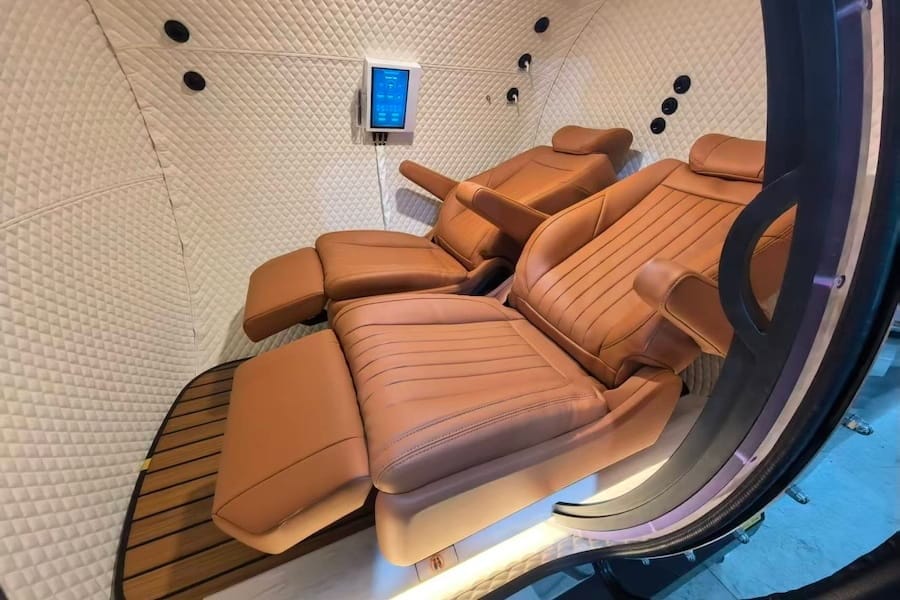

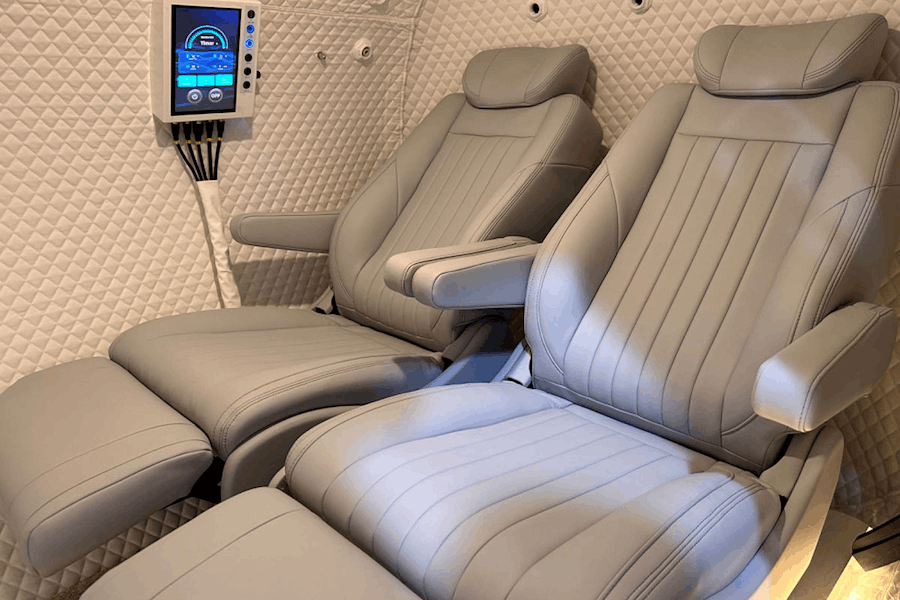

Arden: A Purpose-Built Two-Chair Chamber
Arden is designed around a standard two-chair layout for projects requiring simultaneous seated two-user capacity.
Unlike Argon, where one-seat and two-seat variants are available separately, Arden begins with two reclining chairs as standard.
Why Choose Arden?
Dedicated two-chair layoutTwo reclining chairs are included as standard.
Inner and outer touchscreen controlControls are available from both inside and outside the chamber.
Integrated oxygen and ventilationIncludes a 20 L/min oxygen concentrator with 93% ±3% oxygen purity and ventilation of ≥140 L/min.
SUS304 unibody constructionBuilt with transparent impact-resistant door and viewing panels.
Technical Snapshot
207 × 161.6 × 174.9 cmApprox. 480 kgSUS304 unibody20 L/min oxygen concentrator93% ±3% oxygen purity≥140 L/min ventilationInner/outer touchscreensTwo-way intercom

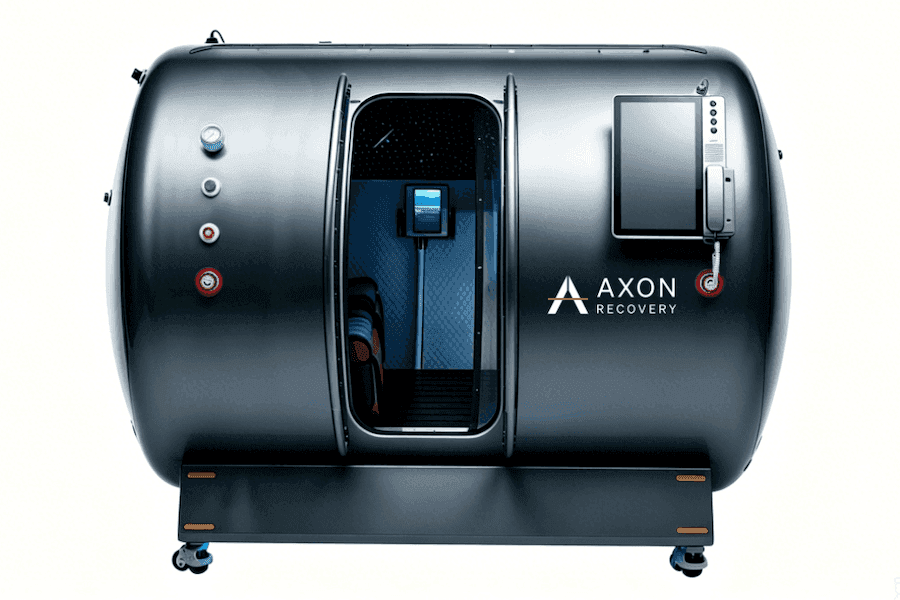

Axiom: Walk-In Capacity for Up to Four Users
Axiom is the largest multi-user chamber in the Axon hard-shell range, with a walk-in seated format and four reclining chairs as standard.
It is designed for projects where multi-user capacity and a larger internal configuration are required.
Why Choose Axiom?
Up to four usersFour reclining chairs are included as standard.
Walk-in seated formatBuilt around seated multi-user operation.
Inner and outer touchscreen controlControls are available from inside and outside the chamber, with integrated monitoring.
Integrated oxygen and ventilationIncludes a 20 L/min oxygen concentrator with 93% ±3% oxygen purity and ventilation of ≥140 L/min.
Technical Snapshot
250 × 170 × 175 cmApprox. 660 kgSUS304 unibody20 L/min oxygen concentrator93% ±3% oxygen purity≥140 L/min ventilationInner/outer touchscreensTwo-way intercom
DETAILED SPECIFICATIONS
Technical Comparison
For buyers who have narrowed the range, compare the objective differences between the four systems.
Capacity, Dimensions & Construction
| Specification | Aster | Argon | Arden | Axiom |
|---|---|---|---|---|
| Capacity | 1 user | 1 or 2 users | 1-2 users | 1-4 users |
| Format | Full-length lie-down | Panoramic seated | Dedicated two-chair | Walk-in seated |
| Dimensions | 225 × 97 × 110 cm | 150 × 175 × 179.1 cm | 207 × 161.6 × 174.9 cm | 250 × 170 × 175 cm |
| Weight | 200 kg | 450 kg | Approx. 480 kg | Approx. 660 kg |
| Construction | SUS304 stainless steel unibody | SUS304 construction | SUS304 unibody | SUS304 unibody |
| Viewing Areas | Transparent polycarbonate | Transparent polycarbonate windows | Transparent impact-resistant door and viewing panels | Transparent polycarbonate |
Oxygen, Controls & Operation
| Specification | Aster | Argon | Arden | Axiom |
|---|---|---|---|---|
| Oxygen Concentrator | Integrated 10 L/min | Integrated 20 L/min | Integrated 20 L/min | Integrated 20 L/min |
| Oxygen Purity | 93% ±3% | 93% ±3% | 93% ±3% | 93% ±3% |
| Ventilation | As specified for Aster system | ≥140 L/min | ≥140 L/min | ≥140 L/min |
| Controls | Internal and external | Touchscreen | Inner and outer touchscreens | Inner and outer touchscreens |
| Monitoring | Integrated system controls | Pressure, oxygen, temperature and humidity | Integrated monitoring | Integrated monitoring |
| Communication | Two-way intercom | Two-way intercom | Two-way intercom | Two-way intercom |
PURCHASE CONFIDENCECE-Certified Equipment3-Year Warranty
Model documentation, equipment specification and applicable project requirements are confirmed as part of the quotation and purchase process.
Request Project PricingSITE & ACCESS PLANNING
Make Sure the Chamber Works in the Building
A chamber can meet the specification and still be wrong for the site.
Before the final model is confirmed, the equipment needs to be assessed against the room, delivery route, utilities and final operating position.
Start With the Final Room
Compare the chamber dimensions with the usable room dimensions, not simply the total floor area.
Allow for user access, operator movement and supporting equipment around the chamber.
Check the Entire Delivery Route
The chamber has to reach the room before it can be positioned inside it.
Building and loading accessIdentify where the equipment will enter the property.
Doorways and corridorsCheck widths, heights and turning points.
Lifts and stairsConfirm that the dimensions and equipment weight can be accommodated.
Final-room accessCheck that the chamber can pass through the final entrance and be moved into its intended position.
The range extends from the 200 kg Aster to the approximately 660 kg Axiom, so access requirements can change substantially between models.
Confirm Utilities and Supporting Equipment
Electrical requirements, power location and supporting equipment should be checked against the chamber being quoted.
Plan the Final Position
The chamber should not simply fit.
Its position should make sense for user access, operator movement, controls, communication and normal use of the surrounding room.
“We had to be careful with space planning from the beginning. Axon helped us look at what would actually fit, what made sense for daily use, and where the investment was best placed.”
A Chamber That Fits the Specification Still Needs to Fit the Building.
Have room dimensions, a floor plan or access photos?
Include them with your pricing request so Axon can review likely site fit alongside the chamber recommendation.
THE PROJECT PROCESS
What Happens When You Move Forward With Axon?
Once the likely chamber has been identified, Axon helps move the purchase through the practical stages required to confirm and coordinate the equipment.
Confirm the Chamber
Review the intended users, preferred format and key purchase requirements before the model is finalized.
Review the Site
Check room fit, delivery access, supporting equipment and the applicable electrical or site requirements.
Finalize the Quote and Delivery Plan
Confirm the equipment specification, commercial terms and logistics requirements for the destination.
Coordinate Delivery and Setup
Axon coordinates the applicable delivery requirements and provides setup guidance for the agreed project scope.
AFTER DELIVERY
Post-Purchase Support
Post-purchase assistance includes the applicable documentation, warranty support, operator guidance, technical assistance and servicing.
CE-certified equipment and a 3-year warranty apply to the hard-shell range.
Project-specific documentation, training, delivery scope and service requirements are confirmed as part of the purchase.
PROJECT PRICING
What Determines Your Project Price?
Hard-shell chamber systems start fromAED 100,000
The final price depends on the model selected, its configuration, the destination and the applicable delivery and site requirements.
What Shapes the Final Quote?
Chamber ModelThe four systems differ substantially in capacity, dimensions, weight and equipment configuration.
Selected VariantWhere separate variants are available, the quoted specification reflects the chamber selected.
Project LocationDelivery requirements vary across the UAE and GCC according to the destination and logistics involved.
Site and Access RequirementsProject-specific handling or access requirements can affect the delivery plan.
Included Equipment and SupportThe quotation identifies the chamber, supporting equipment and the delivery, setup and support provisions included.
Get Pricing Against Your Actual Requirements
Request pricing for the chamber, destination and requirements of your project.
Not sure which chamber you need? Axon can recommend the most relevant model from the information you provide.
Do you support delivery and setup across the GCC?
Yes. Axon supports projects across the UAE and GCC with delivery coordination and setup guidance.
The exact delivery and site scope is confirmed against the selected equipment and destination.
What electrical and site requirements need to be checked?
Requirements vary by chamber and supporting equipment.
Power, equipment placement, access and room requirements should be checked before the final chamber is ordered and the room is prepared.
Are the hard-shell chambers CE certified?
Yes. The hard-shell equipment is CE certified.
Applicable documentation is supplied and confirmed as part of the purchase process.
What warranty applies?
The hard-shell chamber range is supplied with a 3-year warranty.
The warranty documentation and applicable terms are confirmed with the final order.
Is operator training and after-sales support available?
Yes. Operator guidance, training, servicing and technical support are available as part of the applicable project and after-sales scope.
What is included in the quotation?
The quotation identifies the chamber and selected variant, applicable supporting equipment, delivery arrangements and the setup or support provisions included.
Can I request pricing if I do not know which model I need?
Yes.
Provide the number of users, intended use, project location and available space. Axon can use those details to narrow the range and recommend the most relevant chamber before preparing project-specific pricing.
PROJECT ENQUIRY
Get Pricing for Your Project
Share a few details so Axon Recovery can identify the most relevant hard-shell chamber and prepare pricing for your requirements.
Hard-shell systems from AED 100,000Not sure which model you need? Tell us what you are planning and Axon can recommend the closest fit.
Chamber selectionRecommend oneTell us about your users, space and intended use.
